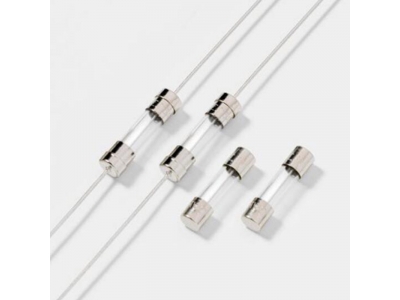

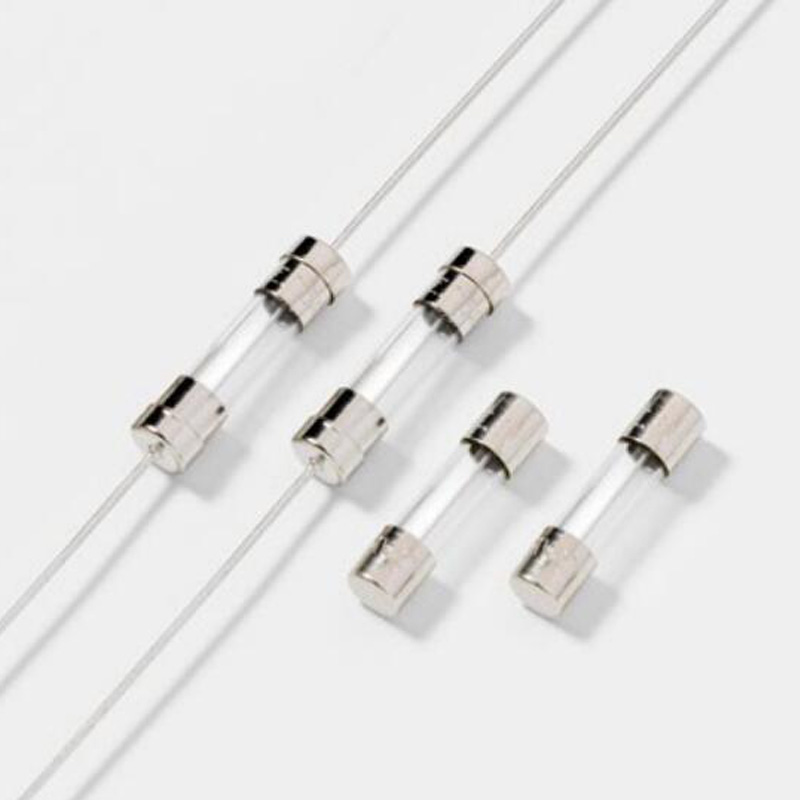

力特0218系列玻璃保險管
力特5x20mm快斷玻璃保險絲，以IEC標準設計按照國際標準（IEC）設計，全球通用 符合IEC 60127-2，符合RoHS和無鉛。應用：可用于家電的保護或者利用設備提供組件的單個防護或內部電路的保護。
- 品牌： 力特/littelfuse
- 分類： 玻璃保險管
- 最大電壓： 250V
- 額定電流： 0.032A-16A
Littelfuse_218規格書
AmpCode | Amp Rating (A) | Voltage Rating (V) | Interrupting Rating | Nominal Cold Resistance (Ohms) | Nominal Melting I2t (A2sec) | Maximum Voltage Drop at Rated Current (mV) | Maximum Power Dissipation At 1.5In (W) |
.032 | 0.032 | 250 | 35A@250VAC | 48.2580 | 0.01100 | 5000 | 1.6 |
.040 | 0.04 | 250 | 31.8621 | 0.01100 | 4000 | 1.6 | |
.050 | 0.05 | 250 | 21.2920 | 0.02700 | 3500 | 1.6 | |
.063 | 0.063 | 250 | 14.2680 | 0.04600 | 3000 | 1.6 | |
.080 | 0.08 | 250 | 9.0700 | 0.07500 | 2500 | 1.6 | |
.100 | 0.1 | 250 | 6.0180 | 0.07900 | 2000 | 1.6 | |
.125 | 0.125 | 250 | 4.2000 | 0.1465 | 1900 | 1.6 | |
.160 | 0.16 | 250 | 3.7000 | 0.14400 | 1500 | 1.6 | |
.200 | 0.2 | 250 | 1.6000 | 0.3410 | 1300 | 1.6 | |
.250 | 0.25 | 250 | 1.0495 | 0.5405 | 1100 | 1.6 | |
.315 | 0.315 | 250 | 0.8475 | 1.1100 | 1000 | 1.6 | |
.400 | 0.4 | 250 | 0.5350 | 1.3250 | 900 | 1.6 | |
.500 | 0.5 | 250 | 0.3700 | 2.8250 | 300 | 1.6 | |
.630 | 0.63 | 250 | 0.2750 | 4.6750 | 250 | 1.6 | |
.800 | 0.8 | 250 | 0.0813 | 3.370 | 150 | 1.6 | |
001. | 1 | 250 | 0.0613 | 6.730 | 150 | 1.6 | |
1.25 | 1.25 | 250 | 0.0446 | 12.650 | 150 | 1.6 | |
01.6 | 1.6 | 250 | 0.0336 | 23.350 | 150 | 1.6 | |
002. | 2 | 250 | 0.0293 | 14.450 | 150 | 1.6 | |
02.5 | 2.5 | 250 | 0.0219 | 23.250 | 120 | 1.6 | |
3.15 | 3.15 | 250 | 0.0173 | 38.150 | 100 | 1.6 | |
004. | 4 | 250 | 40A@250VAC | 0.0129 | 69.10 | 100 | 1.6 |
005. | 5 | 250 | 50A@250VAC | 0.0104 | 111.00 | 100 | 1.6 |
06.3 | 6.3 | 250 | 63A@250VAC | 0.0076 | 198.50 | 100 | 1.6 |
008. | 8 | 250 | 80A@250VAC | 0.0059 | 341.50 | 100 | 4 |
010. | 10 | 250 | 100A@250VAC | 0.0045 | 568.00 | 100 | 4 |
12.5 | 12.5 | 250 | 63A@250VAC | 0.0034 | 889.00 | 100 | 4 |
015. | 15 | 250 | 100A@250VAC | 0.0028 | 1405.00 | 100 | 4 |
016. | 16 | 250 | 63A@250VAC | 0.0021 | 1955.00 | 100 | 4 |
