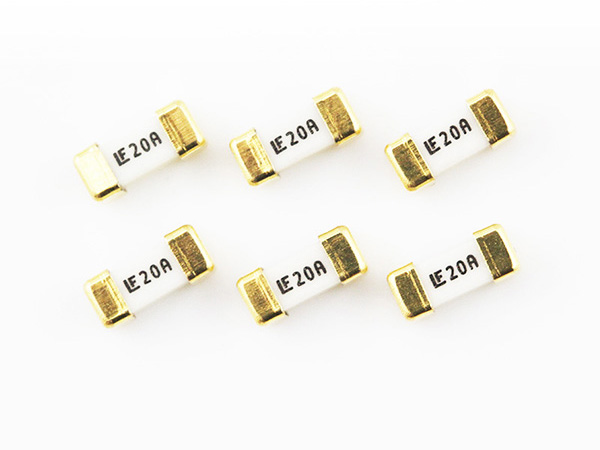

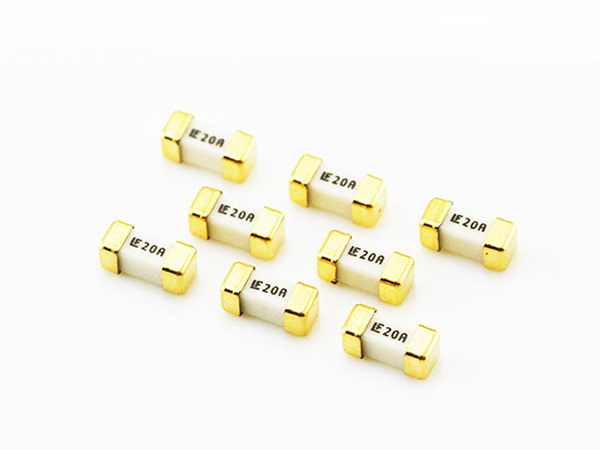

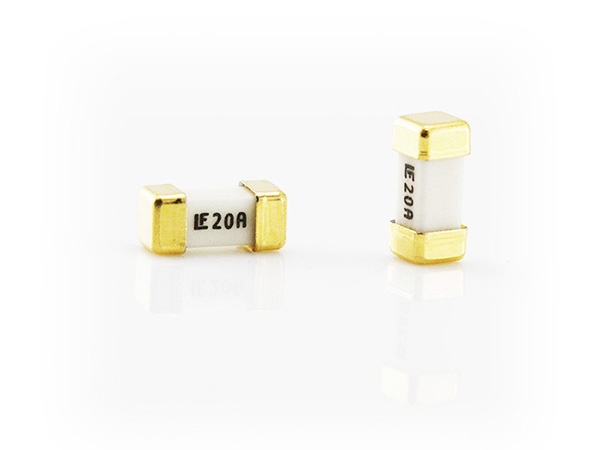

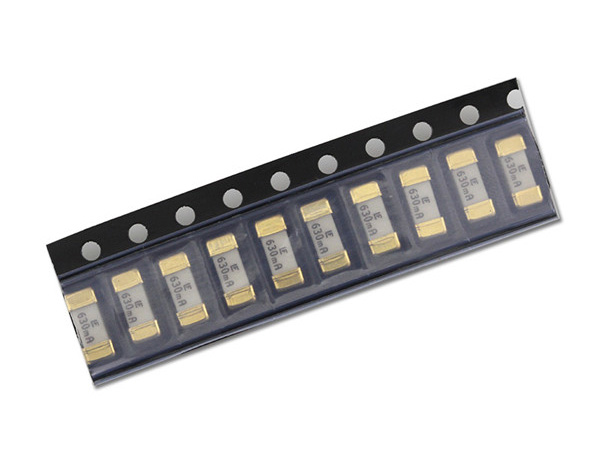

力特0451系列貼片保險絲
Nano2? SMF保險絲是一種非常小型的架空線方形表面貼裝保險絲，非常適合次級電路過流保護應用，專為使用表面貼裝技術的PCB設計。
功能與特色:
特快熔斷
尺寸小巧
額定電流范圍寬泛：（0.062A至20A）
工作溫度范圍廣泛
低溫重新額定
符合RoHS標準，不含鹵素
- 品牌： 力特/littelfuse
- 分類： 貼片保險絲
- 最大電壓： 65V，125V
- 額定電流： 0.062A-15A
Littelfuse_451規格書
Part Number | Ampere Rating (A) | Amp Code | Max Voltage Rating (V) | Interrupting Rating | Nominal Code Resistance (Ohms) | Nominal Melting I2t (A2sec) |
0451.062MRL | 0.062 | .062 | 125 | 50A @125VAC/VDC 300A @32 VDC PSE:100A @100VAC | 5.5000 | 0.00019 |
0451.080MRL | 0.080 | .080 | 125 | 4.0500 | 0.00033 | |
0451.100MRL | 0.100 | .100 | 125 | 3.1000 | 0.00138 | |
0451.125MRL | 0.125 | .125 | 125 | 1.7000 | 0.00286 | |
0451.160MRL | 0.160 | .160 | 125 | 1.2157 | 0.0048 | |
0451.200MRL | 0.200 | .200 | 125 | 0.8372 | 0.0089 | |
0451.250MRL | 0.250 | .250 | 125 | 0.5765 | 0.0158 | |
0451.315MRL | 0.315 | .315 | 125 | 0.3918 | 0.0311 | |
0451.375MRL | 0.375 | .375 | 125 | 0.4541 | 0.0442 | |
0451.400MRL | 0.400 | .400 | 125 | 0.4233 | 0.0551 | |
0451.500MRL | 0.500 | .500 | 125 | 0.3046 | 0.0824 | |
0451.630MRL | 0.630 | .630 | 125 | 0.2022 | 0.1381 | |
0451.750MRL | 0.750 | .750 | 125 | 0.1444 | 0.2143 | |
0451.800MRL | 0.800 | .800 | 125 | 0.1355 | 0.2654 | |
0451001.MRL | 1.00 | 001. | 125 | 0.0780 | 0.6029 | |
04511.25MRL | 1.25 | 1.25 | 125 | 0.0780 | 0.664 | |
045101.5MRL | 1.50 | 01.5 | 125 | 0.0630 | 0.853 | |
045101.6MRL | 1.60 | 01.6 | 125 | 0.0580 | 1.060 | |
0451002.MRL | 2.00 | 002. | 125 | 50A@125VAC/VDC 10,000A@75VDC 300A @32VDC PSE:100A@100VAC | 0.0367 | 0.530 |
045102.5MRL | 2.50 | 02.5 | 125 | 0.0286 | 1.029 | |
0451003.MRL | 3.00 | 003. | 125 | 0.0227 | 1.650 | |
04513.15MRL | 3.15 | 3.15 | 125 | 0.0215 | 1.920 | |
045103.5MRL | 3.50 | 03.5 | 125 | 0.0200 | 2.469 | |
0451004.MRL | 4.00 | 004. | 125 | 0.0160 | 3.152 | |
0451005.MRL | 5.00 | 005. | 125 | 0.0125 | 5.566 | |
045106.3MRL | 6.30 | 06.3 | 125 | 50A@125VAC/VDC 400A@32VDC PSE:100A@100VAC | 0.0096 | 9.170 |
0451007.MRL | 7.00 | 007. | 125 | 0.0090 | 10.32 | |
0451008.MRL | 8.00 | 008. | 125 | 0.0077 | 20.23 | |
0451010.MRL | 10.0 | 010. | 125 | 35A @125VAC 50A @125VDC 400A @32 VDC PSE:100A @100VAC | 0.0056 | 26.46 |
0451012.MRL | 12.0 | 012. | 65 | 150A @65VDC 100A @65VAC 400A @32VDC | 0.0049 | 47.97 |
0451015.MRL | 15.0 | 015. | 65 | 0.0037 | 97.82 | |
0451020.MRL | 20.0 | 020. | 65 | 0.00244 | 154 |
