Bourns伯恩斯MF-LSMF系列自恢復保險絲

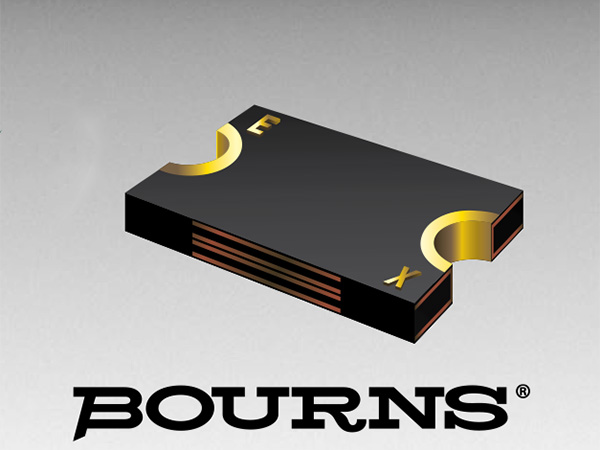

Bourns伯恩斯MF-MSMF系列自恢復保險絲屬表面貼裝保險絲，封裝尺寸為2920，用于保護的快速跳閘時間（TTT），過流保護器件，具有優異的可焊性，對稱設計。符合RoHS標準*且無鹵素
- 品牌： 伯恩斯/Bourns
- 分類： SMD自恢復保險絲
- 最大電壓： 6~60V
- 額定電流： 0.3A~6A
- 封裝： 2920封裝
Bourns伯恩斯MF-LSMF系列規格書Model | Vmax. (V) | Imax. (A) | Ihold at23℃ (A) | Itrip @23℃ (A) | Pd typ. (W) | Maximum Time To Trip @23℃ | Resistance @23℃ | ||
Current (A) | Time (Sec.) | Rimin. (Ω) | R1max. (Ω) | ||||||
MF-LSMF030X | 60 | 40 | 0.30 | 0.6 | 1.5 | 1.5 | 3.0 | 0.90 | 4.8 |
MF-LSMF050X | 60 | 40 | 0.50 | 1.0 | 1.5 | 2.5 | 4.0 | 0.20 | 1.4 |
MF-LSMF075X | 30 | 40 | 0.75 | 1.5 | 1.5 | 8.0 | 0.3 | 0.15 | 1.0 |
MF-LSMF075/60X | 60 | 40 | 0.75 | 1.5 | 1.5 | 8.0 | 0.3 | 0.15 | 1.0 |
MF-LSMF110X | 33 | 40 | 1.10 | 2.2 | 1.5 | 8.0 | 0.5 | 0.07 | 0.41 |
MF-LSMF110/60X | 60 | 40 | 1.10 | 2.2 | 2.0 | 8.0 | 0.5 | 0.07 | 0.41 |
MF-LSMF125X | 15 | 40 | 1.25 | 2.5 | 1.5 | 8.0 | 2.0 | 0.05 | 0.25 |
MF-LSMF125/33X | 33 | 40 | 1.25 | 2.5 | 1.5 | 8.0 | 2.0 | 0.055 | 0.25 |
MF-LSMF150X | 15 | 40 | 1.50 | 3.0 | 1.5 | 8.0 | 2.0 | 0.05 | 0.23 |
MF-LSMF150/33X | 33 | 40 | 1.50 | 3.0 | 1.5 | 8.0 | 2.0 | 0.05 | 0.23 |
MF-LSMF185X | 15 | 40 | 1.85 | 3.7 | 1.5 | 8.0 | 2.5 | 0.045 | 0.15 |
MF-LSMF185/24X | 24 | 40 | 1.85 | 3.7 | 1.5 | 8.0 | 2.5 | 0.045 | 0.15 |
MF-LSMF185/33X | 33 | 40 | 1.85 | 3.7 | 1.5 | 8.0 | 2.5 | 0.045 | 0.15 |
MF-LSMF200X | 15 | 40 | 2.00 | 4.0 | 1.5 | 8.0 | 5.0 | 0.035 | 0.125 |
MF-LSMF200/24X | 24 | 40 | 2.00 | 4.0 | 1.5 | 8.0 | 5.0 | 0.035 | 0.125 |
MF-LSMF260X | 24 | 40 | 2.60 | 5.2 | 1.5 | 8.0 | 5.0 | 0.020 | 0.075 |
MF-LSMF260/6X | 6 | 40 | 2.60 | 5.0 | 1.5 | 8.0 | 10 | 0.020 | 0.075 |
MF-LSMF260/16X | 16 | 40 | 2.60 | 5.2 | 1.5 | 8.0 | 5.0 | 0.020 | 0.075 |
MF-LSMF300X | 6 | 40 | 3.00 | 5.0 | 1.5 | 8.0 | 15 | 0.015 | 0.048 |
MF-LSMF300/16X | 16 | 40 | 3.00 | 5.0 | 1.5 | 8.0 | 15 | 0.015 | 0.048 |
MF-LSMF300/24X | 24 | 40 | 3.00 | 5.2 | 1.5 | 8.0 | 15 | 0.015 | 0.075 |
MF-LSMF330X | 6 | 40 | 3.30 | 5.5 | 2.0 | 8.0 | 15 | 0.010 | 0.055 |
MF-LSMF330/12X | 12 | 40 | 3.30 | 5.5 | 2.0 | 8.0 | 15 | 0.010 | 0.055 |
MF-LSMF330/16X | 16 | 40 | 3.30 | 55 | 2.0 | 8.0 | 15 | 0.010 | 0.055 |
MF-LSMF330/24X | 24 | 40 | 3.30 | 5.5 | 2.0 | 8.0 | 15 | 0.010 | 0.055 |
MF-LSMF400/16X | 16 | 40 | 4.00 | 8.0 | 1.5 | 20 | 4.0 | 0.005 | 0.040 |
MF-LSMF500/16X | 16 | 40 | 5.00 | 10.0 | 1.5 | 20 | 5.0 | 0.005 | 0.025 |
MF-LSMF600/12X | 12 | 50 | 6.00 | 12.0 | 2.0 | 30 | 2.0 | 0.004 | 0.020 |
Model | A | B | C | D | E | |||||
Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | |
| MF-LSMF030X | 6.73/0.265 | 7.98/0.314 | 4.8/0.189 | 5.44/0.214 | 0.75/0.03 | 1.25/0.049 | 0.3/0.012 | 2.5/0.098 | 0.25/0.01 | 2/0.079 |
| MF-LSMF050X | 0.75/0.03 | 1.25/0.049 | ||||||||
| MF-LSMF075X | 0.35/0.014 | 0.85/0.033 | ||||||||
| MF-LSMF075/60X | 0.75/0.03 | 1.7/0.067 | ||||||||
| MF-LSMF110X | 0.35/0.014 | 0.85/0.033 | ||||||||
| MF-LSMF110/60X | 0.75/0.03 | 1.7/0.067 | ||||||||
| MF-LSMF125X | 0.35/0.014 | 0.85/0.033 | ||||||||
| MF-LSMF125/33X | 0.75/0.03 | 1.6/0.063 | ||||||||
| MF-LSMF150X | 0.35/0.014 | 0.85/0.033 | ||||||||
| MF-LSMF150/33X | 0.75/0.03 | 1.6/0.063 | ||||||||
| MF-LSMF185X | 0.35/0.014 | 0.85/0.033 | ||||||||
| MF-LSMF185/24X | 0.75/0.03 | 1.6/0.063 | ||||||||
| MF-LSMF185/33X | 0.75/0.03 | 1.6/0.063 | ||||||||
| MF-LSMF200X | 0.75/0.03 | 1.6/0.063 | ||||||||
| MF-LSMF200/24X | 0.75/0.03 | 1.6/0.063 | ||||||||
| MF-LSMF260X | 0.75/0.03 | 1.6/0.063 | ||||||||
| MF-LSMF260/6X | 0.35/0.014 | 0.85/0.033 | ||||||||
| MF-LSMF260/16X | 0.75/0.03 | 1.6/0.063 | ||||||||
| MF-LSMF300X | 0.35/0.014 | 0.85/0.033 | ||||||||
| MF-LSMF300/16X | 0.75/0.03 | 1.6/0.063 | ||||||||
| MF-LSMF300/24X | 0.75/0.03 | 1.6/0.063 | ||||||||
| MF-LSMF330X | 0.35/0.014 | 0.85/0.033 | ||||||||
| MF-LSMF330/12X | 0.75/0.03 | 1.6/0.063 | ||||||||
| MF-LSMF330/16X | 0.75/0.03 | 1.6/0.063 | ||||||||
| MF-LSMF330/24X | 0.75/0.03 | 1.6/0.063 | ||||||||
| MF-LSMF400/16X | 0.75/0.03 | 1.6/0.063 | ||||||||
| MF-LSMF500/16X | 0.75/0.03 | 1.6/0.063 | ||||||||
| MF-LSMF600/12X | 0.75/0.03 | 1.6/0.063 | ||||||||
DIMENSIONS:MM/INCHES
