力特高溫貼片保險絲

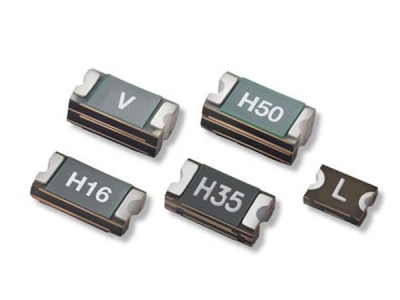

力特高溫保險絲是汽車用高溫貼片保險絲，是Littelfuse首個符合針對汽車應用的符合AEC-Q200標準的小型耐高溫PPTC系列產品，能夠為空間極為有限且需要自恢復保護的設備提供表面貼裝型過電流保護。
- 品牌： 力特/Littelfuse
- 分類： 高溫貼片保險絲
- 最大電壓： 6~30V
- 額定電流： 0.054A~1.5A
力特高溫保險絲規格書
電氣特性（25°C）
| Part No. | Size | Ihold (A) | Itrip (A) | Vmax (Vdc) | Imax (A) | Pdtyp. (W) | Maximum Time To Trip | Resistance | ||
| Current (A) | Time (Sec.) | Rimin (Ω) | R1max (Ω) | |||||||
| picoASMDCH005F | 0805 | 0.05 | 0.18 | 16 | 40 | 0.6 | 0.5 | 0.08 | 3.50 | 38.0 |
| picoASMDCH010F | 0805 | 0.10 | 0.60 | 16 | 40 | 1.0 | 2.5 | 1.50 | 1.00 | 10.0 |
| picoASMDCH016F | 0805 | 0.16 | 0.68 | 16 | 40 | 0.9 | 8.0 | 0.10 | 0.80 | 6.00 |
| picoASMDCH020F | 0805 | 0.20 | 0.70 | 16 | 40 | 0.9 | 8.0 | 0.10 | 0.75 | 3.40 |
| picoASMDCH035F | 0805 | 0.35 | 1.10 | 16 | 40 | 0.9 | 8.0 | 0.10 | 0.30 | 1.90 |
| picoASMDCH050F | 0805 | 0.50 | 1.70 | 16 | 40 | 1.5 | 8.0 | 0.10 | 0.25 | 1.60 |
| nanoASMDCH005F | 1206 | 0.05 | 0.15 | 30 | 20 | 0.8 | 0.25 | 20.0 | 3.50 | 350 |
| nanoASMDCH010F/30 | 1206 | 0.10 | 0.30 | 30 | 20 | 0.8 | 0.5 | 5.00 | 1.00 | 7.50 |
| nanoASMDCH016F | 1206 | 0.16 | 0.80 | 30 | 20 | 0.9 | 8.0 | 0.10 | 0.70 | 6.00 |
| nanoASMDCH020F | 1206 | 0.20 | 0.60 | 30 | 20 | 0.9 | 8.0 | 0.01 | 0.60 | 4.50 |
| nanoASMDCH035F | 1206 | 0.35 | 0.95 | 16 | 50 | 1.0 | 3.5 | 0.20 | 0.20 | 1.60 |
| nanoASMDCH035F/30 | 1206 | 0.35 | 1.75 | 30 | 20 | 1.2 | 8.0 | 0.10 | 0.40 | 2.20 |
| nanoASMDCH050F/24 | 1206 | 0.50 | 2.50 | 24 | 20 | 1.7 | 8.0 | 0.10 | 0.20 | 1.60 |
| nanoASMDCH075F | 1206 | 0.75 | 2.25 | 12 | 40 | 0.8 | 8.0 | 0.15 | 0.08 | 0.46 |
| microASMDCH010F | 1210 | 0.10 | 0.30 | 30 | 20 | 0.8 | 2.5 | 0.10 | 1.00 | 7.50 |
| microASMDCH016F | 1210 | 0.16 | 0.48 | 30 | 20 | 0.8 | 2.5 | 0.10 | 0.70 | 60 |
| microASMDCH020F | 1210 | 0.20 | 0.60 | 30 | 20 | 0.8 | 2.5 | 0.10 | 0.60 | 4.20 |
| microASMDCH035F | 1210 | 0.35 | 1.05 | 30 | 20 | 1.2 | 8.0 | 0.01 | 0.40 | 2.20 |
| microASMDCH050F | 1210 | 0.50 | 1.05 | 30 | 20 | 1.5 | 8.0 | 0.10 | 0.30 | 1.60 |
| microASMDCH075F | 1210 | 0.75 | 2.25 | 16 | 20 | 1.3 | 8.0 | 0.10 | 0.10 | 0.68 |
| microASMDCH110F | 1210 | 1.10 | 3.30 | 16 | 20 | 1.5 | 8.0 | 0.50 | 0.06 | 0.50 |
| microASMDCH125F | 1210 | 1.25 | 3.75 | 12 | 40 | 1.5 | 8.0 | 1.00 | 0.03 | 0.30 |
| microASMDCH150F | 1210 | 1.50 | 4.50 | 12 | 40 | 1.85 | 8.0 | 1.00 | 0.025 | 0.25 |
| miniASMDCH050F | 1812 | 0.50 | 1.60 | 30 | 20 | 1.2 | 8.0 | 0.10 | 0.20 | 1.35 |
| AHS050-2 | 2018 | 0.50 | 1.50 | 33 | 70 | 1.5 | 8.0 | 0.15 | 0.20 | 1.30 |
| AHS080-2018 | 2018 | 0.80 | 2.00 | 16 | 70 | 1.5 | 8.0 | 9.00 | 0.13 | 0.55 |
| AHS080F/33-2 | 2018 | 0.80 | 2.00 | 33 | 70 | 1.9 | 8.0 | 0.81 | 0.10 | 0.60 |
| AHS120 | 2920 | 1.20 | 2.30 | 16 | 50 | 2.2 | 8.0 | 2.00 | 0.15 | 0.34 |
| AHS120F/33 | 2920 | 1.20 | 2.30 | 33 | 20 | 2.2 | 8.0 | 2.00 | 0.15 | 0.34 |
Vmax = 元件在額定電流下能承受的最大電壓。
Imax = 元件在額定電壓下能承受的最大電流。
Ihold = 在25℃靜止空氣環境中，產品不動作的最大電流。
Itrip = 在25℃靜止空氣環境中，最小動作電流。
Pd =在25℃靜空氣環境中，產品動作狀態下的消耗功率。
Ri min/max =25℃溫度條件下的初始阻值（焊接前）。
R1max = 25℃溫度條件下，焊接一小時后的最大阻值。
注意 : 超出指定額定值的操作，可能會導致損傷或產生電弧喝火焰。
| Part No. | Dimensions in Millimeters | Figeure | ||||||||||||||
| A | B | C | D | E | F | G | H | |||||||||
| Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | ||
| picoASMDCH005F | 2.0 | 2.2 | 0.4 | 0.8 | 1.3 | 1.5 | 0.25 | 0.75 | 0.08 | - | - | - | - | - | - | 1 |
| picoASMDCH010F | 2.0 | 2.2 | 0.4 | 0.8 | 1.3 | 1.5 | 0.25 | 0.75 | 0.076 | - | - | - | - | - | - | 1 |
| picoASMDCH016F | 2.0 | 2.2 | 0.4 | 0.8 | 1.3 | 1.5 | 0.25 | 0.75 | 0.08 | - | - | - | - | - | - | 1 |
| picoASMDCH020F | 2.0 | 2.2 | 0.4 | 0.8 | 1.3 | 1.5 | 0.25 | 0.75 | 0.08 | - | - | - | - | - | - | 1 |
| picoASMDCH035F | 2.0 | 2.2 | 0.6 | 1.2 | 1.3 | 1.5 | 0.25 | 0.75 | 0.08 | - | - | - | - | - | - | 1 |
| picoASMDCH050F | 2.0 | 2.2 | 0.6 | 1.2 | 1.3 | 1.5 | 0.25 | 0.75 | 0.08 | - | - | - | - | - | - | 1 |
| nanoASMDCH005F | 3.0 | 3.4 | 0.6 | 0.85 | 1.37 | 1.8 | 0.25 | 0.75 | 0.076 | - | - | - | - | - | - | 1 |
| nanoASMDCH010F/30 | 3.0 | 3.4 | 0.6 | 0.85 | 1.37 | 1.8 | 0.25 | 0.75 | 0.076 | - | - | - | - | - | - | 1 |
| nanoASMDCH016F | 3.0 | 3.4 | 0.61 | 0.89 | 1.37 | 1.8 | 0.25 | 0.75 | 0.076 | - | - | - | - | - | - | 1 |
| nanoASMDCH020F | 3.0 | 3.4 | 0.6 | 0.85 | 1.37 | 1.8 | 0.25 | 0.75 | 0.076 | - | - | - | - | - | - | 1 |
| nanoASMDCH035F | 3.0 | 3.4 | 0.91 | 1.14 | 1.37 | 1.8 | 0.25 | 0.75 | 0.076 | - | - | - | - | - | - | 1 |
| nanoASMDCH035F/30 | 3.0 | 3.4 | 1.16 | 1.46 | 1.37 | 1.8 | 0.25 | 0.75 | 0.076 | - | - | - | - | - | - | 1 |
| nanoASMDCH050F/24 | 3.0 | 3.4 | 1.16 | 1.46 | 1.37 | 1.8 | 0.25 | 0.75 | 0.076 | - | - | - | - | - | - | 1 |
| nanoASMDCH075F | 3.0 | 3.4 | 0.75 | 1.00 | 1.37 | 1.8 | 0.25 | 0.75 | 0.076 | - | - | - | - | - | - | 1 |
| microASMDCH010F | 3.0 | 3.43 | 0.6 | 0.85 | 2.35 | 2.8 | 0.25 | 0.75 | 0.076 | - | - | - | - | - | - | 1 |
| microASMDCH016F | 3.0 | 3.43 | 0.6 | 0.85 | 2.35 | 2.8 | 0.25 | 0.75 | 0.076 | - | - | - | - | - | - | 1 |
| microASMDCH020F | 3.0 | 3.43 | 0.6 | 0.85 | 2.35 | 2.8 | 0.25 | 0.75 | 0.076 | - | - | - | - | - | - | 1 |
| microASMDCH035F | 3.0 | 3.43 | 0.6 | 0.85 | 2.35 | 2.8 | 0.25 | 0.75 | 0.076 | - | - | - | - | - | - | 1 |
| microASMDCH050F | 3.0 | 3.43 | 1.1 | 1.40 | 2.35 | 2.8 | 0.25 | 0.75 | 0.076 | - | - | - | - | - | - | 1 |
| microASMDCH075F | 3.0 | 3.43 | 0.4 | 0.60 | 2.35 | 2.8 | 0.25 | 0.75 | 0.076 | - | - | - | - | - | - | 1 |
| microASMDCH110F | 3.0 | 3.43 | 0.75 | 1.05 | 2.35 | 2.8 | 0.25 | 0.75 | 0.076 | - | - | - | - | - | - | 1 |
| microASMDCH125F | 3.0 | 3.43 | 1.1 | 1.40 | 2.35 | 2.8 | 0.25 | 0.75 | 0.076 | - | - | - | - | - | - | 1 |
| microASMDCH150F | 3.0 | 3.43 | 1.1 | 1.40 | 2.35 | 2.8 | 0.25 | 0.75 | 0.076 | - | - | - | - | - | - | 1 |
| miniASMDCH050F | 4.37 | 4.83 | 0.5 | 0.82 | 3.07 | 3.41 | 0.25 | 0.95 | 0.200 | - | - | - | - | - | - | 1 |
| AHS050-2 | 4.72 | 5.44 | - | 1.68 | 4.22 | 4.93 | 0.25 | 0.36 | 0.25 | 0.36 | 0.3 | 0.46 | - | - | - | 2 |
| AHS080-2018 | 4.72 | 5.44 | - | 1.58 | 4.22 | 4.93 | 0.25 | 0.36 | 0.25 | 0.36 | 0.3 | 0.46 | - | - | - | 2 |
| AHS080F/33-2 | 4.72 | 5.44 | - | 1.52 | 4.22 | 4.93 | 0.25 | 0.36 | 0.25 | 0.36 | 0.30 | 0.46 | 2 | |||
| AHS120 | 6.73 | 7.98 | - | 3.00 | 4.80 | 5.11 | 0.6 | 0.71 | 0.56 | 0.71 | 2.16 | 2.41 | 0.66 | 1.37 | 0.43 | 3 |
| AHS120F/33 | 6.73 | 7.98 | - | 3.00 | 4.80 | 5.44 | 0.56 | 0.71 | 0.56 | 0.71 | 2.16 | 2.41 | 0.66 | 1.37 | 0.43 | 3 |
