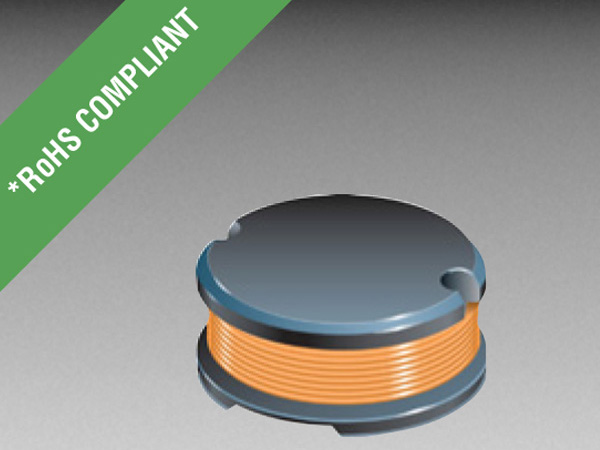

Bourns伯恩斯電感器SDR0805系列
Bourns伯恩斯SDR0805系列電感器主要材料為：鐵氧體鐵芯,漆包銅電線,DAP基底，Ag/Ni/Sn端子。
- 品牌： Bourns/伯恩斯
- 分類： 貼片電感器
- 最大電壓： -
- 額定電流： -
Part No. | Inductance 1kHz | Q | Test Frequnecy | SRF Min. | RDC Max. | I rms Max. | I sat Typ. | |
(μH) | Tol. % | Ref. | (MHz) | (MHz) | （Ω） | (A) | （A） | |
SDR0805-1R5ML | 1.5 | ±20 | 32 | 7.96 | 120 | 0.02 | 6.00 | 9.10 |
SDR0805-2R5ML | 2.5 | ±20 | 32 | 7.96 | 70 | 0.02 | 5.00 | 7.20 |
| SDR0805-3R3ML | 3.3 | ±20 | 32 | 7.96 | 55 | 0.02 | 4.50 | 6.30 |
| SDR0805-3R9ML | 3.9 | ±20 | 32 | 7.96 | 45 | 0.02 | 4.40 | 5.70 |
| SDR0805-4R7ML | 4.7 | ±20 | 31 | 7.96 | 38 | 0.03 | 3.70 | 5.00 |
| SDR0805-5R6ML | 5.6 | ±20 | 31 | 7.96 | 34 | 0.04 | 3.50 | 4.60 |
| SDR0805-6R8ML | 6.8 | ±20 | 30 | 7.96 | 33 | 0.04 | 3.20 | 4.10 |
| SDR0805-7R5ML | 7.5 | ±20 | 29 | 7.96 | 30 | 0.05 | 2.80 | 3.70 |
| SDR0805-8R2ML | 8.2 | ±20 | 29 | 7.96 | 30 | 0.05 | 2.80 | 3.70 |
| SDR0805-100ML | 10 | ±20 | 25 | 2.52 | 22 | 0.07 | 2.30 | 3.20 |
| SDR0805-120ML | 12 | ±20 | 25 | 2.52 | 20 | 0.08 | 2.00 | 3.00 |
| SDR0805-150ML | 15 | ±20 | 20 | 2.52 | 16 | 0.09 | 1.80 | 2.70 |
| SDR0805-180ML | 18 | ±20 | 20 | 2.52 | 15 | 0.10 | 1.60 | 2.60 |
| SDR0805-220ML | 22 | ±20 | 20 | 2.52 | 13 | 0.11 | 1.50 | 2.30 |
| SDR0805-270KL | 27 | ±20 | 15 | 2.52 | 12 | 0.12 | 1.30 | 2.10 |
| SDR0805-330KL | 33 | ±10 | 15 | 2.52 | 10 | 0.14 | 1.20 | 1.90 |
| SDR0805-390KL | 39 | ±10 | 15 | 2.52 | 10 | 0.16 | 1.10 | 1.70 |
| SDR0805-470KL | 47 | ±10 | 15 | 2.52 | 9 | 0.20 | 1.00 | 1.60 |
| SDR0805-560KL | 56 | ±10 | 15 | 2.52 | 9 | 0.24 | 0.94 | 1.50 |
| SDR0805-680KL | 68 | ±10 | 15 | 2.52 | 8 | 0.30 | 0.85 | 1.30 |
| SDR0805-820KL | 82 | ±10 | 12 | 2.52 | 7 | 0.37 | 0.78 | 1.20 |
| SDR0805-101KL | 100 | ±10 | 12 | 0.796 | 7 | 0.45 | 0.72 | 1.10 |
| SDR0805-121KL | 120 | ±10 | 12 | 0.796 | 6 | 0.48 | 0.66 | 1.00 |
| SDR0805-151KL | 150 | ±10 | 12 | 0.796 | 6 | 0.68 | 0.58 | 0.85 |
| SDR0805-181KL | 180 | ±10 | 12 | 0.796 | 5 | 0.77 | 0.51 | 0.80 |
| SDR0805-221KL | 220 | ±10 | 12 | 0.796 | 5 | 0.96 | 0.49 | 0.80 |
| SDR0805-271KL | 270 | ±10 | 12 | 0.796 | 5 | 1.11 | 0.42 | 0.66 |
| SDR0805-331KL | 330 | ±10 | 12 | 0.796 | 4 | 1.26 | 0.40 | 0.58 |
| SDR0805-391KL | 390 | ±10 | 12 | 0.796 | 4 | 1.77 | 0.36 | 0.55 |
| SDR0805-471KL | 470 | ±10 | 12 | 0.796 | 4 | 1.96 | 0.34 | 0.50 |
| SDR0805-561KL | 560 | ±10 | 30 | 0.796 | 4 | 2.50 | 0.30 | 0.46 |
| SDR0805-681KL | 680 | ±10 | 29 | 0.796 | 3 | 2.80 | 0.28 | 0.42 |
| SDR0805-821KL | 820 | ±10 | 28 | 0.796 | 3 | 4.00 | 0.23 | 0.35 |
| SDR0805-102KL | 1000 | ±10 | 27 | 0.252 | 3 | 4.50 | 0.21 | 0.34 |
| SDR0805-122KL | 1200 | ±10 | 28 | 0.252 | 2 | 6.80 | 0.17 | 0.28 |
| SDR0805-152KL | 1500 | ±10 | 27 | 0.252 | 2 | 8.00 | 0.15 | 0.26 |
| SDR0805-182KL | 1800 | ±10 | 30 | 0.252 | 2 | 9.20 | 0.14 | 0.23 |
| SDR0805-222KL | 2200 | ±10 | 29 | 0.252 | 2 | 10.0 | 0.13 | 0.20 |
| SDR0805-272KL | 2700 | ±10 | 31 | 0.252 | 1 | 11.8 | 0.12 | 0.18 |
| SDR0805-332KL | 3300 | ±10 | 28 | 0.252 | 1 | 16.5 | 0.10 | 0.17 |
| SDR0805-392KL | 3900 | ±10 | 28 | 0.252 | 1 | 18.0 | 0.09 | 0.16 |
| SDR0805-472KL | 4700 | ±10 | 30 | 0.252 | 1 | 21.0 | 0.08 | 0.15 |
