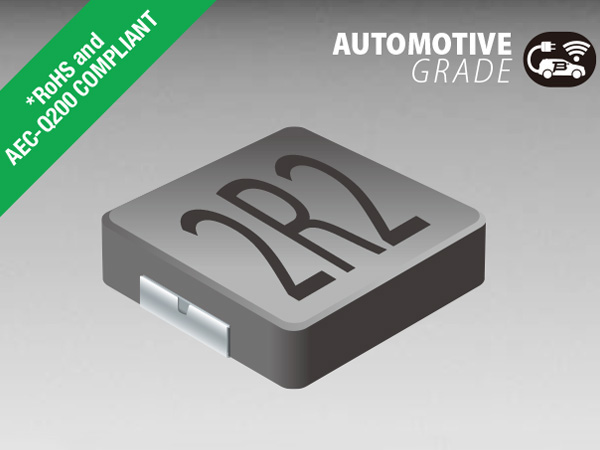

Bourns伯恩斯電感器SRP4020TA系列
Bourns伯恩斯SRP4020TA系列電感器主要材料為羰基粉末鐵芯，漆包銅電線，Sn表面處理端子
- 品牌： Bourns/伯恩斯
- 分類： 貼片電感器
- 最大電壓： -
- 額定電流： -
Part No. | Inductance @1kHz/1V | Q Min. | SRF Typ. | DCR Typ. | DCR Max. | I rms | I sat | Terminal Type | |
L(μH) | Tol. % | @1kHz/1V | (MHz) | （mΩ） | （mΩ） | (A) | （A） | ||
SRP4020TA-R10Y | 0.10 | ±30 | 10 | 300 | 3.2 | 4 | 12 | 35 | Lead Fream |
SRP4020TA-R22Y | 0.22 | ±30 | 10 | 270 | 6.6 | 7.3 | 11 | 24 | |
SRP4020TA-R33M | 0.33 | ±20 | 10 | 130 | 7.8 | 8.6 | 10 | 18 | |
SRP4020TA-R47M | 0.47 | ±20 | 10 | 120 | 11.2 | 14 | 8.0 | 12 | |
SRP4020TA-R56M | 0.56 | ±20 | 10 | 105 | 13.5 | 16 | 7.3 | 10 | |
SRP4020TA-R68M | 0.68 | ±20 | 10 | 100 | 16 | 19 | 7.0 | 10 | |
SRP4020TA-1R0M | 1.0 | ±20 | 10 | 65 | 22 | 27 | 5.0 | 8.5 | |
SRP4020TA-1R2M | 1.2 | ±20 | 10 | 64 | 25 | 30 | 4.8 | 7.8 | |
SRP4020TA-1R5M | 1.5 | ±20 | 10 | 62 | 34.8 | 42 | 4.5 | 7.0 | |
SRP4020TA-2R2M | 2.2 | ±20 | 10 | 45 | 51 | 61 | 4.0 | 6.0 | |
SRP4020TA-3R3M | 3.3 | ±20 | 10 | 40 | 69 | 76 | 3.5 | 4.0 | |
SRP4020TA-4R7M | 4.7 | ±20 | 10 | 27 | 95 | 105 | 2.6 | 3.5 | |
SRP4020TA-5R6M | 5.6 | ±20 | 10 | 25 | 112 | 125 | 2.2 | 3.0 | |
SRP4020TA-6R8M | 6.8 | ±20 | 10 | 24 | 150 | 172 | 2.1 | 2.8 | |
SRP4020TA-8R2M | 8.2 | ±20 | 10 | 21 | 158 | 180 | 2.0 | 2.5 | |
SRP4020TA-100M | 10 | ±20 | 10 | 19 | 215 | 243 | 1.8 | 2.3 | |
SRP4020TA-150M | 15 | ±20 | 10 | 17 | 325 | 374 | 1.5 | 1.9 | |
SRP4020TA-220M | 22 | ±20 | 10 | 12 | 470 | 500 | 1.2 | 1.4 | |
