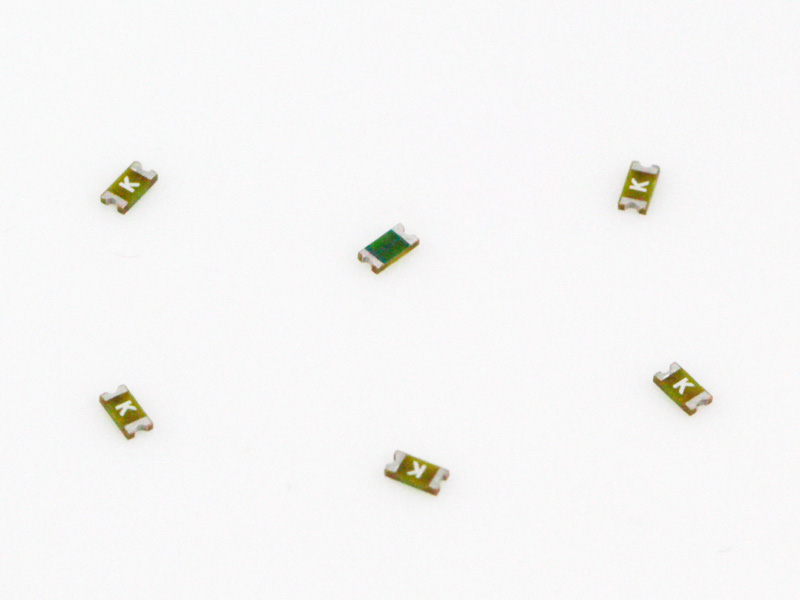

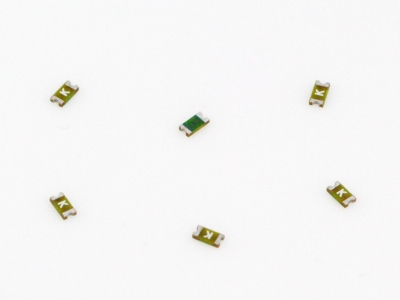

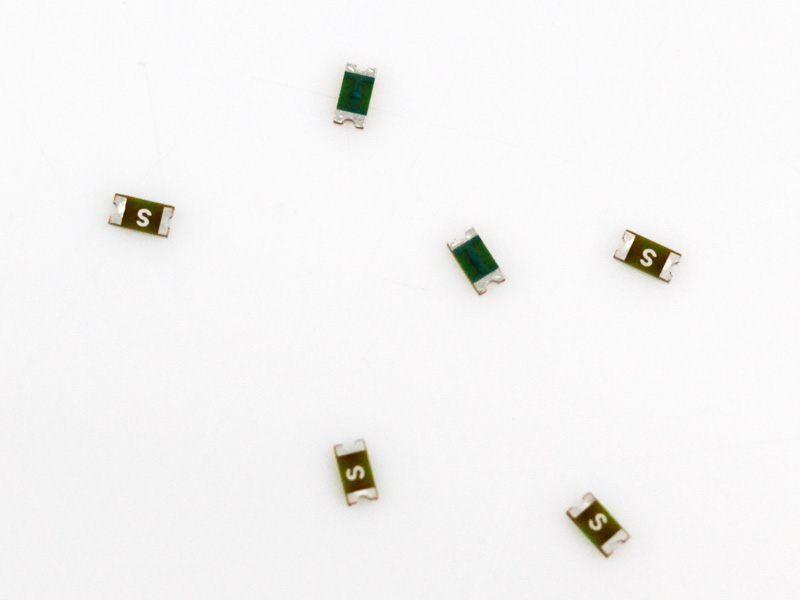

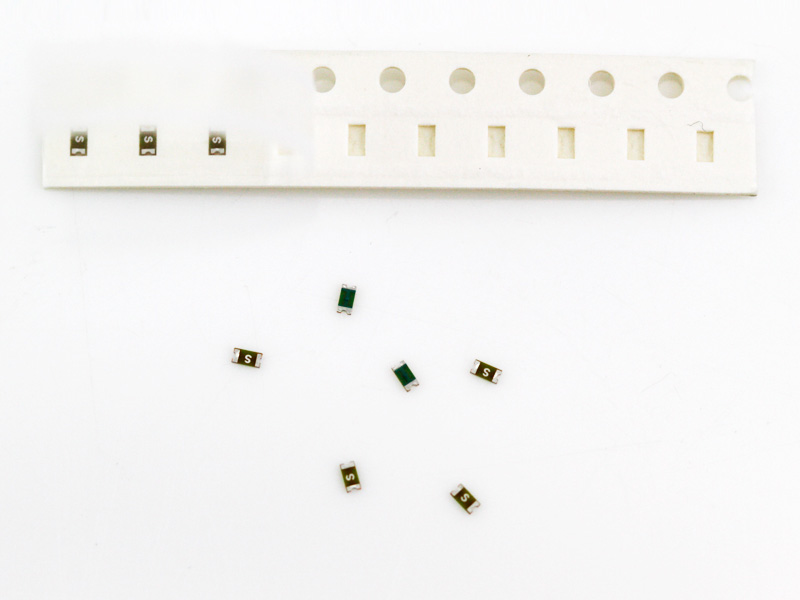

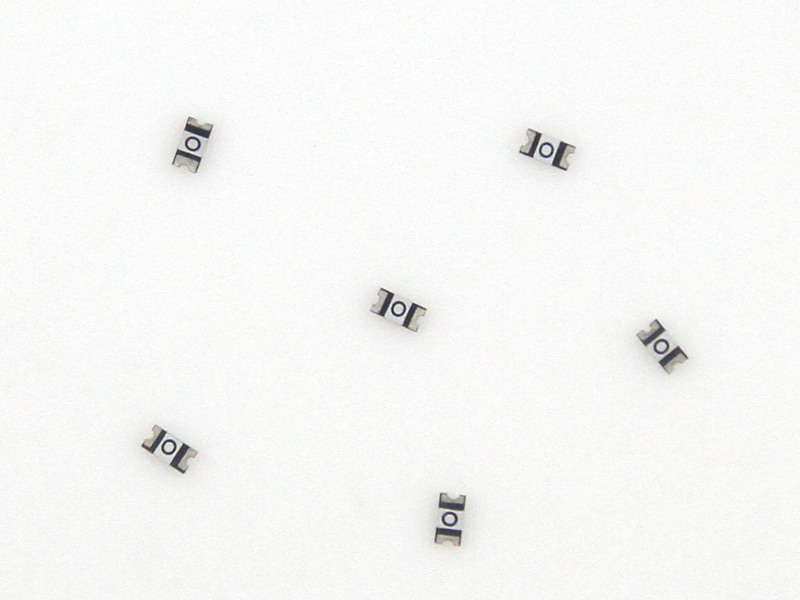

力特0467系列貼片保險絲
467系列快熔型表面貼裝保險絲系列是一種超小型（0603尺寸規(guī)格）薄膜器件，用于電路的次級保護，適用于空間有限的應用場合，例如手持便攜式電子設備。 此系列100%無鉛，符合RoHS指令的要求。 可提供新型無鹵467系列保險絲。
- 品牌： 力特/littelfuse
- 分類： 貼片保險絲
- 最大電壓： 32V
- 額定電流： 0.25A-5A
Littelfuse_467規(guī)格書
| Part Number | Ampere Rating (A) | Amp Code | Max Voltage Rating (V) | Interrupting Rating | Nominal Code Resistance (Ohms) | Nominal Melting I2t(A2sec) | Nom Voltage Drop (mV) | Nom Power Dissipation (W) |
| 0467.250NRHF | 0.250 | .250 | 32 | 50A @32V AC/DC | 0.5650 | 0.0014 | 158.56 | 0.0396 |
| 0467.375NRHF | 0.375 | .375 | 32 | 0.3000 | 0.0035 | 128.03 | 0.0480 | |
| 0467.500NRHF | 0.500 | .500 | 32 | 0.1870 | 0.0087 | 138.50 | 0.0693 | |
| 0467.750NRHF | 0.750 | .750 | 32 | 0.1170 | 0.0171 | 123.30 | 0.0925 | |
| 0467001.NRHF | 1.00 | 001. | 32 | 0.0700 | 0.0212 | 67.40 | 0.0674 | |
| 04671.25NRHF | 1.25 | 1.25 | 32 | 35A @32V AC/DC 13A@65V DC | 0.0510 | 0.0518 | 84.32 | 0.1054 |
| 046701.5NRHF | 1.50 | 01.5 | 32 | 0.0385 | 0.0766 | 71.60 | 0.1074 | |
| 04671.75NRHF | 1.75 | 1.75 | 32 | 35A @32V AC/DC | 0.0310 | 0.0903 | 78.75 | 0.1378 |
| 0467002.NRHF | 2.00 | 002. | 32 | 0.0280 | 0.1891 | 78.22 | 0.1564 | |
| 046702.5NRHF | 2.50 | 02.5 | 32 | 0.0210 | 0.2066 | 76.10 | 0.1903 | |
| 0467003.NRHF | 3.00 | 003. | 32 | 0.0170 | 0.2403 | 75.04 | 0.2251 | |
| 046703.5NRHF | 3.50 | 03.5 | 32 | 0.0139 | 0.4306 | 65.30 | 0.2286 | |
| 0467004.NRHF | 4.00 | 004. | 32 | 0.0118 | 0.8410 | 63.10 | 0.2524 | |
| 0467005.NRHF | 5.00 | 005. | 32 | 0.0089 | 0.9000 | 61.20 | 0.3060 |
